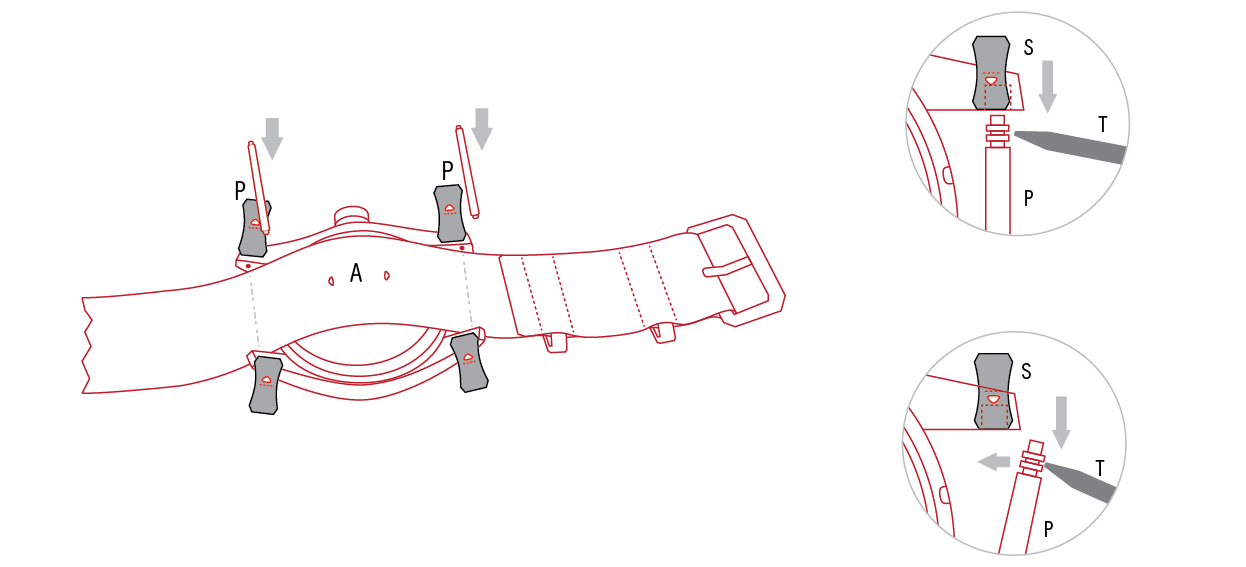

1. Place watch case on a soft pad, with dial facing down.

2. Peel and attach the scuff masks [S] on the watch lugs.

3. Push the spring bar pins with spring bar tool [T].

4. Align the spring bar [P] pins to the holes in the lugs.

5. Push the spring bar pin with spring bar tool [T].

6. Ensure both spring bar pins are fully engaged in lug holes.

7. Remove scuff masks from lugs.

8. Repeat above steps to attach both straps.

9. Test attachment by pulling in up, down, left and right directions.

10. Test again by pulling in up, down, left and right directions.

1. Place watch case on a soft pad, with dial facing down.

2. Peel and attach the scuff masks [S] on the watch lugs.

3. Place strap and align marks [A] to center of the watch case.

4. Place the spring bars [P] and align them to lug holes.

5. Push the spring bar pin with spring bar tool [T].

6. Align the spring bar pin to the holes in the lugs.

7. Ensure both spring bar pins are fully engaged in lug holes.

8. Remove scuff masks from lugs.

9. Test attachment by pulling in up, down, left and right directions.

10. Test again by pulling in up, down, left and right directions.
